OPPO A17k (CPH2471)
OPPO A17k (CPH2471)

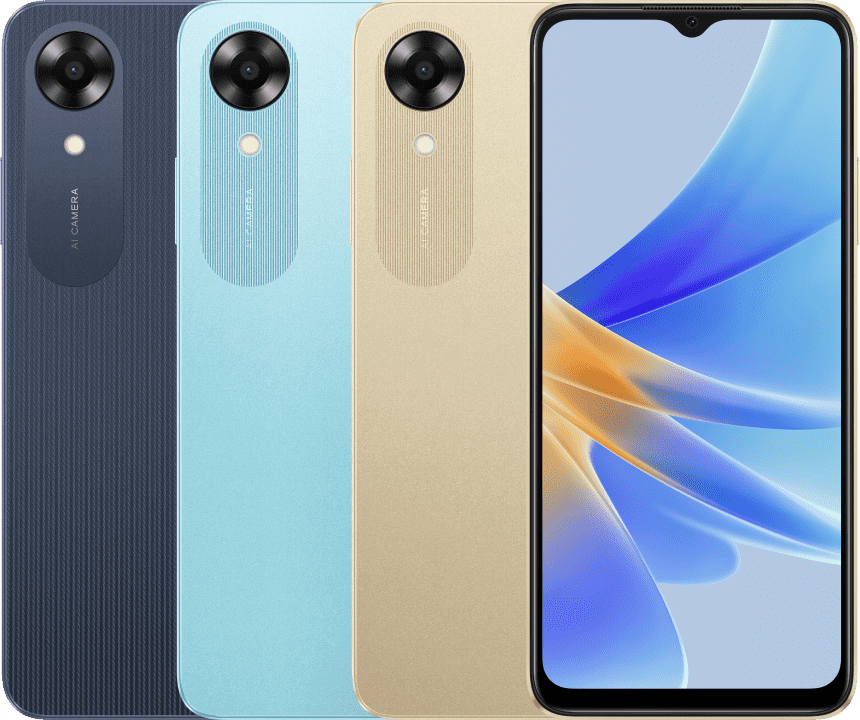

* Product pictures are for reference only. Please refer to the actual product.
Height
about 164.2mm
Width
about 75.6mm
Thickness
about 8.3mm
Weight
about 189g
* Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
Ram and Rom Capacities
3GB+64GB
Ram Type
LPDDR4X @ 1600MHz, dual 16-bit channels
Rom Specifications
eMMC 5.1
Phone Storage Card
Supported
USB OTG
Supported
* The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.
Size
6.56 inches
Screen Ratio
89.8%
Resolution
HD (1612 × 720)
Refresh Rate
Maximum: 60Hz
Touch Sampling Rate
Touch sampling rate: Max (default) 60Hz
Touch reporting rate: Max (default) 120Hz
Colour Gamut
Vivid mode: 96% NTSC/100% DCI-P3
Gentle mode: 72% NTSC/100% sRGB
Colour Depth
16.7 million colors (8-bit)
Pixel Density
269PPI
Brightness
Standard maximum brightness: 480nits
Maximum brightness under sunlight: 600nits
Panel
LCD (LTPS/A-Si)
Cover Glasses
Panda
Rear
Main camera: f/2.0, FOV 78°, 4P lens, AF, open-loop focus motor, OIS not supported
Front
5MP (f/2.2); FOV 76.8°; 3P lens; AF not supported; OIS not supported
Shooting Mode
Rear: Night, Video, Photo, Time-lapse, Expert, Panorama, and Google Lens
Front: Video, Photo, Portrait, Time-lapse, Panorama
Rear
1080P@30fps or 720P@30fps (default)
Front
1080P@30fps or 720P@30fps (default)
SoC
MediaTek Helio G35
CPU
8 cores, up to 2.3GHz
GPU
IMG GE8320 @ 680MHz
Battery
4890mAh/18.92Wh (Min)
5000mAh/19.35Wh (Typ)
Fingerprint
Supported
Facial Recognition
Supported
Geomagnetic sensor
Light sensor
Proximity sensor
Accelerometer
Gravity sensor
This model does not have the gyroscope and built-in hardware pedometer (step counter).
SIM 2
Supported
SIM Card Type
Nano-SIM card
Frequency Band
[Version 1]
GSM: 850/900/1800/1900MHz
WCDMA: Bands 1/5/8
LTE FDD: Bands 1/3/5/7/8/20/28
LTE TDD: Bands 38/40/41
[Version 2]
GSM: 850/900/1800/1900MHz
WCDMA: Bands 1/5/8
LTE FDD: Bands 1/3/5/8
LTE TDD: Bands 38/40/41 (2535-2655MHz)
* Functions available on the live network depend on the situations of carrier's network and related services deployment.
WLAN
Supports Wi-Fi 5 (802.11ac), 802.11a/b/g/n;
WLAN 2.4G/WLAN 5.1G/WLAN 5.8G;
Supports WLAN Display; WLAN network sharing
Bluetooth® Version
Bluetooth® v5.3, Bluetooth® Low Energy (Bluetooth® Low Energy)
Bluetooth® Audio Codec
SBC, AAC, aptX, aptX HD, and LDAC
USB Interface
Micro USB
Earphone Jack
3.5mm
ColorOS 12.1
GNSS
Built-in GPS, A-GPS, BeiDou, GLONASS, and Galileo positioning systems
Others
Wi-Fi positioning, mobile network-based positioning, and electronic compass
Maps
Amap and Google Maps
Phone x 1
Charger x 1
Micro USB data cable x 1
SIM Ejector Tool x 1
Safety Guide x 1
Quick Guide x 1
Protective Case x 1
In order to make the front of the phone more compact, the light sensor hole is hidden at the top of the screen. Screen protectors with poor light transmission, such as those that are colored or darkened, may block the light sensor hole and affect the normal use of the phone.
