OPPO Reno11 F 5G (CPH2603)
OPPO Reno11 F 5G (CPH2603)

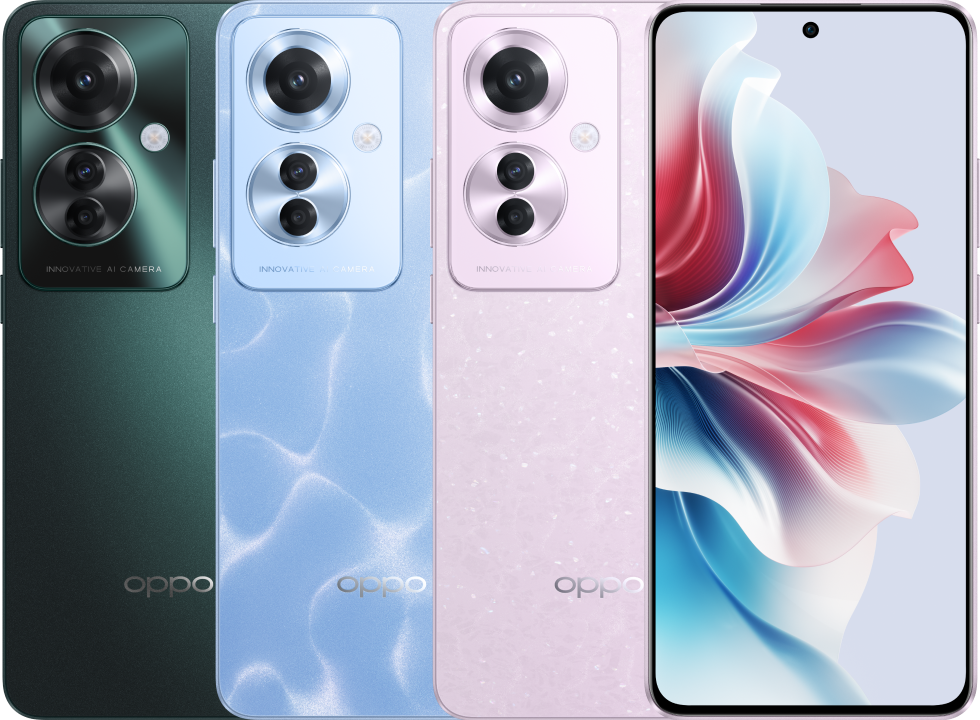

* Product pictures are for reference only. Please refer to the actual product.
Height
about 161.6mm
Width
about 74.7mm
Thickness
about 7.54mm
Weight
about 177g
* Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.
RAM and ROM Capacities
8GB + 128GB
8GB + 256GB
RAM Type
LPDDR4X@2133 MHz, 2 x 16 bits
ROM Specifications
UFS3.1
Phone Storage Card
Supported
USB OTG
Supported
* The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.
Size
6.7"
Screen Ratio
93.4%
Resolution
FHD+ (2412x1080)
Refresh Rate
Maximum: 120Hz (60/90/120Hz)
Touch Sampling Rate
Maximum: 240Hz
Default: 120Hz
Colour Gamut
Vivid Mode: 100% DCI-P3 coverage
Natural Mode: 100% sRGB coverage
Colour Depth
1.07 billion colors
Pixel Density
394PPI
Brightness
Global default maximum brightness: 500nits (typical);
Global excitation maximum brightness: 900nits (typical);
Local peak maximum brightness: 1100nits
Panel
2.5D flexible OLED
Cover Glasses
Panda glass (twice-reinforced)
Rear
Main camera: 64MP; f/1.7; FOV 81°; 6P lens; AF supported; OIS not supported
Wide: 8MP; f/2.2; FOV 112°; 5P lens; fixed focus
Macro: 2MP; f/2.4; FOV 89°; 3P+IR lens; fixed focus
Front
32MP; f/2.4; FOV 90°; 5P lens; AF not supported
Shooting Mode
Rear: Pro, Video, Photo, Portrait, Night, Extra HD, Pano, Macro, Slow-motion, Time-Lapse, Dual-view video, Sticker, Text Scanner, and Google lens
Front: Video, Photo, Portrait, Night, Pano, Time-lapse, Dual-view video, and Sticker
Rear
Max: 4K@30fps, 1080P@60fps/30fps, 720P@60fps/30fps; Default: 1080P@30fps;
EIS: 1080P@60fps/30fps;
Slow-motion: 1080P@120fps/480fps, 720P@240fps/960fps;
Time-lapse: 1080P@30fps;
Dual-view video: 1080P@30fps
Front
Max: 4K/1080P/720P@30fps; Default: 1080P@30fps;
Video stabilization in 1080P@30fps
SoC
MediaTek Dimensity 7050
CPU
8 cores
GPU
ARM Mali-G68 MC4
Battery
4880mAh/19.09Wh (Rated)
5000mAh/19.55Wh (Typical)
Fast Charge
Asia-Pacific: SuperVOOCTM 2.0, SuperVOOCTM, VOOC 3.0, and PD2.0 (9V/1.5A) supported;
Europe: SuperVOOCTM 2.0, SuperVOOCTM, VOOC 3.0, PD2.0 (9V/1.5A), and PD3.0 (11V/5A) supported
* The SUPERVOOC word mark and logos are trademarks owned by Guangdong OPPO Mobile Telecommunications Corp., Ltd.
Fingerprint
Supported
Facial Recognition
Supported
Geomagnetic sensor
Light sensor
Proximity sensor
Acceleration sensor
Gravity sensor
Gyroscope
Step counting
SIM 2
Supported
SIM Card Type
Nano-SIM card
Frequency Band
[Version 1]
GSM: 850/900/1800/1900MHz
WCDMA: Bands 1/2/4/5/6/8/19
LTE FDD: Bands 1/2/3/4/5/7/8/12/13/17/18/19/20/26/28/66
LTE TDD: Bands 38/39/40/41
5G NR: n1/n2/n3/n5/n7/n8/n20/n26/n28/n66/n38/n40/n41/n77/n78
[Version 2]
GSM: 900/1800MHz
WCDMA: Bands 1/8
LTE FDD: Bands 1/3/5/8/28B
LTE TDD: Bands 40/41
5G NR: n1/n3/n5/n8/n28B/n40/n41/n77/n78
[Version 3]
GSM: 850/900/1800/1900MHz
WCDMA: Bands 1/2/4/5/8/19
LTE FDD: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28
LTE TDD: Bands 38/39/40/41/42
5G NR: n1/n3/n28/n41/n77/n78
* Functions available on the live network depend on the situations of carrier's network and related services deployment.
WLAN
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11a/b/g/n/;
WLAN 2.4GHz/WLAN 5GHz;
WLAN Display; WLAN tethering; Wi-Fi 5GHz 80MHz; 2×2 MIMO
Bluetooth® Version
Bluetooth® v5.2, Bluetooth® Low Energy
Bluetooth® Audio Codec
SBC, AAC, aptX, aptX HD, and LDAC
USB Interface
USB Type-C
Earphone Jack
Type-C
NFC
Supported
* NFC support depends on the regions.
ColorOS 14.0
GNSS
BeiDou: B1I; GPS: L1; GLONASS: G1; Galileo: E1; QZSS: L1
Others
Assisted GPS (A-GPS); WLAN and cellular network positioning
Phone x 1
Charger x 1
USB Data Cable x 1
SIM Ejector Tool x 1
Quick Guide x 1
Safety Guide x 1
Protective Case x 1
In order to make the front of the phone more compact, the light sensor hole is hidden at the top of the screen. Screen protectors with poor light transmission, such as those that are colored or darkened, may block the light sensor hole and affect the normal use of the phone.
