OPPO Reno6 Pro 5G Specifications

OPPO Reno6 Pro 5G
(CPH2249)

Bokeh Flare Portrait Video

OPPO Reno Glow

MediaTek Dimensity 1200 + 12GB RAM

65W SuperVOOC 2.0

Aurora | Stellar Black | Majestic Gold

* Product pictures are for reference only. Please refer to the actual product.

Size and Weight

Height: About 16.00 cmWidth: About 7.31 cmThickness: About 0.76 cmWeight: About 177g * Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Memory

12GB RAM + 256GB ROM RAM Type: LPDDR4X @ 2133 MHz 4 x 16 bits External Memory: Not supported USB Version: USB 2.0 USB OTG: Supported * The available internal storage may be smaller as part of the internal storage is occupied by software. Actual memory space may change due to application updates, user operations, and other related factors.

Display

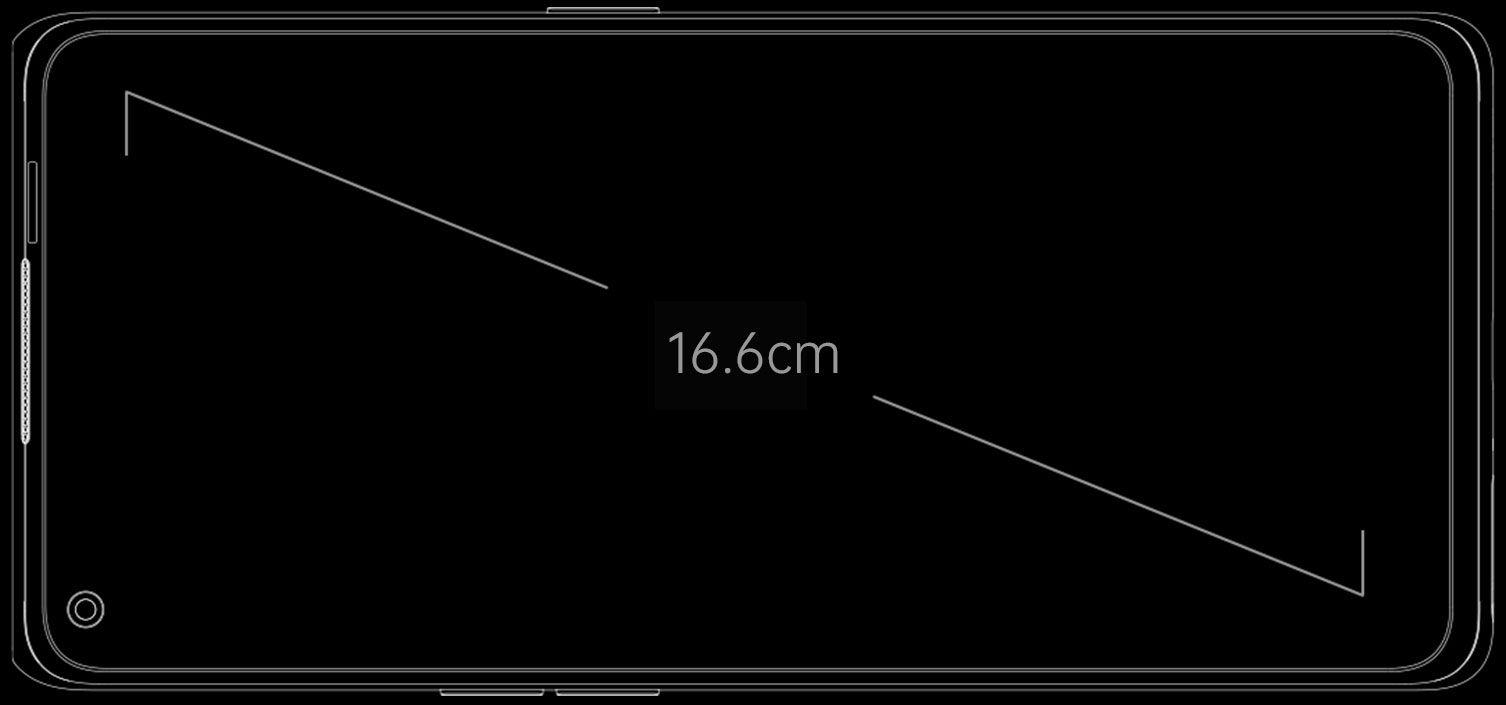

Size: 16.6cm Screen Ratio: 92.1% Resolution: 2400 x 1080 (FHD+) Refresh Rate: 60/90 Hz Touch Sampling Rate: Maximum: 180 Hz / Default: 120 Hz Colour Gamut: Vivid mode 97%NTSC/100%DCI-P3 Pixel Density: 402 PPI Contrast Ratio: 5000000:1 Brightness: Typical value: 500 nits / HBM: 800 nits Panel: Soft AMOLED

Camera

Rear 64MP Main Camera: f/1.7; FOV81°; 6P lens, support AF, adopt closed-loop focus motor 8MP Ultra Wide-angle Camera: f/2.2; fov120°; 5P lens 2MP Macro Camera: f/2.4; fov89°; 3P lens 2MP Mono Camera: f/2.4; fov89°; 3P lens

Front 32MP (f/2.4); fov81°; 5P

Image Size Rear: Maximum size: 6936 x 9248 (64MP) Photo sizes in different aspect ratios: 3468 x 4624 (4:3) 3468 x 3468 (1:1) 2080 x 4624 (full screen) 2608 x 4624 (16:9)

Front: Maximum size: 4896 x 6528 (32MP) Photo sizes in different aspect ratios: 4896 x 6528 (4:3) 4896 x 4896 (1:1) 2944 x 6528 (full screen) 3680 x 6528 (16:9)

Video

Rear4K@30fps, 1080P@60fps/30fps, and 720P@60fps/30fps

Front1080P@30fps (default) or 720P@30fps

Chips

CPU: MediaTek Dimensity 1200CPU Speed: 1 x 3.0 GHz/ 3 x 2.6 GHz/ 4 x 2.0 GHzCPU Cores: Octa-coreGPU Model: Arm Mali-G77 MC9

Battery

2 × 2200 mAh/17.02 Wh (Rated) 2 × 2250 mAh/17.41 Wh (Typical) Equivalent to 4500 mAh * OPPO Reno6 Pro uses two series-connected cells. The equivalent battery capacity is 4500mAh (typical value).

Fast ChargeSuperVOOC 2.0, SuperVOOC, VOOC 3.0, PD (9V/2A), QC (9V/2A)

Biometrics

Supports In-Display Fingerprint and Face Unlock

Sensors

Geomagnetic sensorColor temperature sensorProximity sensorOptical sensorAccelerometerGravity sensorGyroscopePedometer

Cellular Network

SIM 2 : SupportedSIM Card Type : Nano-USIM card* Functions available on the live network depend on the situations of carrier's network and related services deployment.

SIM card 1 2G: GSM, 850/900/1800/1900 MHz 3G: UMTS (WCDMA) bands 1/2/4/5/6/8/19 4G: TD-LTE bands 38/39/40/41 (194 MHz) 4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28 5G: n1/n3/n5/n7/n8/n28/n38/n40/n41/n77/n78
SIM card 2 2G: GSM, 850/900/1800/1900 MHz 3G: UMTS (WCDMA) bands 1/2/4/5/6/8/19 4G: TD-LTE bands 38/39/40/41 (194 MHz) 4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28

SAR Value: Head SAR: 1.17W/kg, Body SAR: 1.03W/kg

Connectivity

WLAN: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11a/b/g/n/; Wi-Fi 2.4G/5.1G/5.8G; Wi-Fi Display and Wi-Fi tethering; 2 × 2 MIMO and MU-MIMO

Bluetooth® Version: Bluetooth® 5.2Bluetooth® Audio Codec: SBC, AAC, aptX, aptX HD, and LDACUSB Interface: USB Type CEarphone Jack: Type-C earphoneNFC: 1. Supported / 2. Supports Android Beam, HCE, and UICC / Multi-function NFC: HCE and NFC-SIM

Operating System

ColorOS 11.3 based on Android 11

Location Technology

GNSS: Supports built-in GPS, A-GPS, BeiDou Navigation Satellite System, GLONASS, and Galileo positioning systems Frequency Antenna : Support GPS; L1, GALILEO: E1, BeiDou: B11 Others : Support AGPS, WLAN, mobile network, and electronic compassMaps: Support Google Maps and other third-party map apps

In the box

Phone x 1USB Cable x 1Earphone x 1Charger x 1Protective Case x 1SIM Ejector Tool x 1Quick Start Guide x 1Safety Guide x 1

Country of Origin

India

Additional Remarks

A special technology is applied to conceal the proximity sensor on the upper front of OPPO's smartphone for theWhole look of simplicity. It may cause abnormality of proximity function if the film or protector covers the proximity sensor area. Refer to OPPO's official layout of protector and film for details.

Download Layout
